FRIGIDAIRE 30"ELECTRIC RANGE WHT

General Specifications

Adjustable Leveling Legs: 4 Adjustable
Product Weight (lbs): 175
Power Type: Electric
Size: 30''
Installation Type: Free-Standing
Collection: Frigidaire

Oven Specifications

Oven 1 Cleaning System: Self-Clean
Oven 1 Interior Lighting: 1 Incandescent

Exterior Specifications

Control Panel Finish: Stainless Steel
Door Finish: Glass with Stainless Steel
Handle Color: Stainless Steel

Capacities

Total Capacity: 5.4
Certifications & Approvals

ADA Compliant: No
Agency Approval: UL
Sabbath Mode: No

Cooktop

Center Rear: Warming Zone - 100 Watts
Cooking Surface: Upswept Black Smoothtop
Element On Indicator Light: 1 Clear
Hot-Surface Indicator Light: 1 Clear
Knob Color: Color-Coordinated
Knob Type: Plastic
Left Front: 6" to 9" - 1400/3000 Watts
Left Rear: 6" - 1200 Watts
Right Front: 9" to 12" - 1800/3000 Watts
Right Rear: 6" - 1200 Watts
Cooktop Surface Type: smooth surface

Exterior

Cooktop Finish: Color-Coordinated Porcelain
Exterior Finish: Painted

Cooking Controls

Bake: Yes
Broil: Broil Variable (400 - 500?F)
Cancel: Yes
Clock: Yes
Delay Clean: Yes
Automatic Oven (Delay Cook & Off): Yes
Lockout: Yes
Lower Drawer Controls: Storage
Self-Clean: 2 3 Hours (Scroll thru)
Probe: No
Timed Bake: Yes
Timed Shut-off: 12 hours
Timer: Yes
Control Lock: Yes

Dimensions: Exterior

Height: 47-3/4"
Width: 29-7/8"
Depth: 28-13/32"
Electrical Specifications

Amps @ 240 Volts: 11.5 / 8.5
Minimum Circuit Required (Amps): 40A
Power Supply Connection Location: Rear Centerline Lower
Voltage Rating: 120V / 240V or 120V / 208V 60Hz

Oven

Bake: 3500 Watts
Baking System: Even Baking Technology
Broil: 3600 Watts
Broil System: Vari-Broil(TM) High/Low
Hidden Bake Element: Yes
Oven 1 Interior Depth: 19-1/8"
Oven 1 Interior Height: 19-3/4"
Oven 1 Interior Width: 24-3/8"
Oven 1 Rack Configuration: 2 Standard
Oven 1 Rack Positions: 6 positions
Oven 1 Type: Main
Oven 1 Window: Extra-Large Visualite(R)

Drawer
Drawer Functionality: Storage
Handle: Integrated

Accessories

Griddle: Optional

Dimensions and Volume
Height: 36 5/8"
Width: 29 7/8"
Depth: 26 3/4"
Depth With Door 900 Open: 47"
Depth With Handle: 29 3/16"
Oven Interior Height: 18 5/8"
Oven Interior Width: 24 3/8"
Oven Interior Depth: 19 1/8"
Oven Capacity: 5 Cu. Ft.
Display
Control Location: Front
Display Type: Membrane

Cooktop Performance
Right Front Element Burner Size: 12"
Right Rear Element Burner Size: 6"
Left Front Element Burner Size (Small): 6"
Left Front Element Burner Size (Large): 9"
Left Rear Element Burner Size: 6"
Right Front Element Burner: 2,700 Watts
Right Rear Element Burner: 1,200 Watts
Left Front Element Burner (Small): 1,400 Watts
Left Front Element Burner (Large): 3,000 Watts
Left Rear Element Burner: 1,200 Watts
Keep Warm Burner Location: Center Rear

Continuous Grates Move heavy pots & pans without lifting with continuous light cast iron grates.
Sealed Gas Burners Enjoy easier cleanup and a burner that stays looking great.
Low Simmer Burner Perfect for delicate foods and sauces.
Color-Coordinated Control Knobs White, Black and Bisque cooktops come with matching knobs - while Stainless Steel models feature our neutral black knobs.
Frigidaire 30'' Gas Cooktop
PRODUCT DIMENSIONS
Height 4-1/4"
Width 30"
Depth 21-3/4"
CERTIFICATIONS
ADA Compliant ADA Logo
frigidaire.com/frigidaire.ca
FFGC3026SB Frigidaire 30'' Gas Cooktop


General Specifications
PROP 65 Label Yes
Gas Connection Location Middle Right Rear
Made In USA No
Reconditioned No
Shipping Weight (lbs) 105
Power Type Gas
Size 30''
Installation Type Drop-In
Collection Frigidaire
Controls
Control Location Front
Control Type Knob
Exterior
Cooktop Finish Black
Cooktop
Warming Zone No
Installed Over a Wall Oven Yes
Grate Material Cast Iron
Left Rear 9500 BTU
Knob Color Black
Left Front 12000 BTU
Sealed Burner Yes
Electronic Ignition Yes
Right Front 15000 BTU
Number of Elements / Burners 4
Lift-up Cooktop Yes
Right Rear 5000 BTU
Bowl Type No
Cooking Surface Black
Grate Color Black Cast Matte
Knob Type Stainless Steel
Grates 2 Full-Length Grates (front to back)
Heat Source 4 Burner
Installation Type
Oven Combo Approved Yes
Electrical Specifications
Amps @ 120 Volts 5A
Dimensions: Cut-Out
Width 28-1/4" - 28-5/8"
Height 8"
Depth 19-3/8" - 19-3/4"
Certifications & Approvals
ADA Compliant - All Brands Yes
UL Listed 4-UL Certified
Agency Approval(All Brands) UL/CSA
CSA Listed Yes
Dimensions: Exterior
Depth 21-3/4"
Width 30"
Height 4-1/4"

Continuous Grates Move heavy pots & pans without lifting with continuous light cast iron grates.
Sealed Gas Burners Enjoy easier cleanup and a burner that stays looking great.
Low Simmer Burner Perfect for delicate foods and sauces.
Color-Coordinated Control Knobs White, Black and Bisque cooktops come with matching knobs 0 while Stainless Steel models feature our neutral black knobs.
Frigidaire 30'' Gas Cooktop
PRODUCT DIMENSIONS
Height 4-1/4"
Width 30"
Depth 21-3/4"
CERTIFICATIONS
ADA Compliant ADA Logo

General Specifications
PROP 65 Label Yes
Gas Connection Location Middle Right Rear
Made In USA No
Reconditioned No
Shipping Weight (lbs) 105
Power Type Gas
Size 30''
Installation Type Drop-In
Collection Frigidaire
Controls
Control Location Front
Control Type Knob
Exterior
Cooktop Finish Stainless Steel
Cooktop
Warming Zone No
Installed Over a Wall Oven Yes
Grate Material Cast Iron
Left Rear 9500 BTU
Knob Color White
Left Front 12000 BTU
Sealed Burner Yes
Electronic Ignition Yes
Right Front 15000 BTU
Number of Elements / Burners 4
Lift-up Cooktop Yes
Right Rear 5000 BTU
Bowl Type No
Cooking Surface Stainless Steel
Grate Color Black Cast Matte
Knob Type Plastic CC
Grates 2 Full-Length Grates (front to back)
Heat Source 4 Burner
Installation Type
Oven Combo Approved Yes
Electrical Specifications
Amps @ 120 Volts 5A
Dimensions: Cut-Out
Width 28-1/4" - 28-5/8"
Height 8"
Depth 19-3/8" - 19-3/4"
Certifications & Approvals
ADA Compliant - All Brands Yes
UL Listed 4-UL Certified
Agency Approval(All Brands) UL/CSA
CSA Listed Yes
Dimensions: Exterior
Depth 21-3/4"
Width 30"
Height 4-1/4"

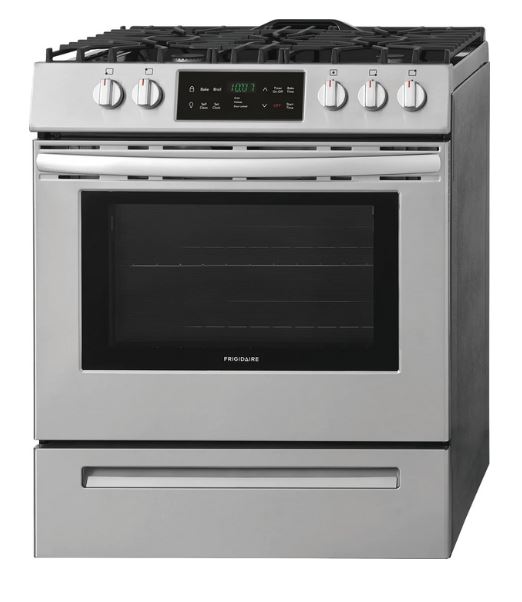

Frigidaire FFGF3054T 30 Inch Wide 5 Cu. Ft. Free Standing Gas Range with Quick Boil Setting and Low Simmer Burner Features:Self-clean options available in 2, 3 and 4-hour cyclesGet meals on the table faster with 17,000 BTU burner that boils water faster than traditional setting Move heavy pots and pans without lifting with continuous corner-to-corner gratesWith the Store-More Storage Drawer, you will have extra space to store your cookwareSet the oven to begin cleaning on your scheduleLarge capacity oven gives you room to cook more dishes at onceAs an extra safety measure, the oven will automatically shut off after 12 hoursEnjoy easier cleanup and a burner that stays looking greatTimes up to 12 hours (control panel colors vary by model)Perfect for cooking delicate foods and saucesLets you set the oven to begin cooking at a predetermined time. (Control panel colors vary by model)Specifications:Total Capacity: 5 Cu. Ft.Back Left Burner BTU: 12000Back Right Burner BTU: 5000Middle Burner BTU: 9500Front Left Burner BTU: 9500Front Right Burner BTU: 17000Broil Element: YesConvection: NoSabbath Mode: NoSelf Cleaning: YesDepth: 25-3/4"Height: 47"Width: 29-7/8" Gas Ranges Black.

The Frigidaire 30" Gas Range with Quick Boil allows you to experience faster boil times with the 17,000 BTU Quick Boil burner. Cleanup is made easy with Delay Clean and One-Touch Self Clean options. Plus, the Store-More(R) Storage Drawer offers extra space to store cookwDimensions and Volume
Height 47"
Width 29 7/8"
Depth 25 3/4"
Depth With Door 90? Open 46 9/16"
Oven Interior Height 18 5/8"
Oven Interior Width 24 3/8"
Oven Interior Depth19 1/8"
Oven Capacity 5 Cu. Ft. are.

FRIGIDAIRE 30" GAS RANGE WHITE

Product Dimensions
Height (Max.) 47"
Width 29-7/8"
Depth (Including Handle) 29-1/4"
More Easy-To-Use Features
Sealed Gas Burners
Enjoy easier cleanup and a burner
that stays looking great.
Large Capacity
Our large capacity oven gives you
room to cook more at once.
Store-More(TM) Storage Drawer
With the Store-More(TM) Storage Drawer,
you will have extra space to store your
cookware.
Delay Clean
Set the oven to begin cleaning on
your schedule.
Available in:
Quick Bake Convection
Bake faster and more evenly with
Quick Bake Convection.
Continuous Corner-to-
Corner Grates
Move heavy pots & pans without lifting
with continuous corner-to-corner grates.
Quick Clean
Quickly clean your oven in 2 hours
with our quick self-clean cycle.
Quick Boil
Get meals on the table faster with our
17,000 BTU burner -- water boils faster
than the traditional setting.
Burners
Right Front
Right Rear
Left Front
Left Rear
Center Extra Zone
BTU
17,000
5,000
9,500
12,000
9,500
Freestanding Ranges
FFGF3056T D / S / W/ B
Stainless
(S)
White
(W)
Black
(B)
Black
Stainless
(D)
Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
Frigidaire Baseline
C
A
36"
(Adjustable)
B
Features
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake
Broil
Quick Bake Convection
Add-a-Minute
Delay Start
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-Off
Oven Lock-Out
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
Optional Accessories
LP Gas Conversion Kit
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Amps @ 120 Volts
Shipping Weight (Approx.)
Ready-Select(R) Controls
Black Porcelain ( D / S ),
Color-Coordinated Porcelain
( W / B )
Yes
Continuous Cast Iron with
Black Matte Finish
Extra-Large
Black Stainless Steel ( D ),
Stainless Steel ( S ),
Color-Coordinated ( W / B )
Black Stainless Steel ( D ),
Stainless Steel ( S ),
Color-Coordinated ( W / B )
Black ( D / S ),
Color-Coordinated ( W / B )
Quick Bake Convection
Self Clean
Storage
Yes
Variable
Yes
Yes
Yes
Yes
2, 3 Hours
Yes
Yes
17,000
5,000
9,500
12,000
9,500
5.0
1
Yes
2 Standard
Even Baking Technology
Vari-Broil(TM) Hi / Lo
18,000 / 13,500
PN # GRLP4
18-5/8" x 24-3/8" x 19-1/8"
Middle Bottom Rear
Right Bottom Rear
120V / 60 Hz / 5A
5
195 Lbs.
FFGF3056T 05/17 (C) 2017 Electrolux Home Products, Inc.
Freestanding Ranges
FFGF3056T D / S / W/ B 30" Gas
Cabinet Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90?
47"
29-7/8"
29-1/4"
46-9/16"
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications
subject to change.
30" min.
13"
max.
25"
Minimum
clearance (A)
required to
nearest
combustible
wall on
either side
of range
above 36"
height
30"
CL
36"
stand.
Wall
15"
11 1/2"
Recommended area for through-the-floor
connection of pipe stub and shutoff valve
8"
Recommended area for 120V outlet on rear of
wall and area for through-the-wall connection
of pipe stub and shutoff valve
23"
18"
min.
24"
10 1/2"
2"
18"
min.
Front
29 7/8"
48 1/2"
max.
46 5/8"
Gas inlet location
(right bottom rear*)
Power cord location
(left bottom rear*)
*w hen viewed from front
Side
25 3/4"
29 1/4"
Frigidaire Baseline
30"
min.*
Based on Largest Minimum
Burner Output Rating Clearance
on Cooking Surface Required
9,500 BTU or less 2"
10,000 - 16,999 BTU 3"
17,000 BTU or greater 5"
* Min. distance from cooking surface
to underside of overhead cabinetry
36"
(Adjustable
to +-1/8")
Note: Overall
product dimensions
are model specific
and may vary slightly
from illustration. Refer
to model's product
specifications for
actual dimensions.
USA o 10200 David Taylor Drive o Charlotte, NC 28262 o 1-800-FRIGIDAIRE o frigidaire.com
CANADA o 5855 Terry Fox Way o Mississauga, ON L5V 3E4 o 1-800-265-8352 o frigidaire.ca
FFGF3056T 05/17 (C) 2017 Electrolux Home Products, Inc
Freestanding Ranges
FFGF3056T D / S / W/ B 30" Gas
Freestanding Range Specifications
o Product Shipping Weight (approx.) - 195 Lbs.
o Voltage Rating - 120V / 60 Hz / 5 Amps
o Amps @ 120 Volts = 5 Amps
o Always consult local and national electric and gas codes.
o Make sure wall coverings around range can withstand heat generated
by range.
o Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90? F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
o Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
o Do not install range beneath any downward-blowing, overhead vent
hood or air curtain.
o Range ships with 3/4" factory regulator.
o Range is LP Gas convertible. (Optional LP Gas Conversion
Kit available.)
o Floor beneath range MUST be solid and level.
o Overhead cabinetry should not exceed a 13" maximum depth.
o Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
o Range can be installed flush to wall with 0" minimum rear clearance.
o Minimum clearance required (from edge of rangetop to nearest
combustible wall on either side of range above 36" height) is based
on largest burner output rating on cooking surface.
o To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
o Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
o LP Gas Conversion Kit - (PN # GRLP4).

FRIGIDAIRE 30" S/STEEL GAS RANGE

Frigidaire(R) Fit Promise Frigidaire(R) Fit Promise We promise that your new 30" or 36" Frigidaire Gallery(R) brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
Frigidaire Gallery 30'' Electric Cooktop
PRODUCT DIMENSIONS
Height 2-5/8"
Width 30-5/8"
Depth 21-3/8"
MORE EASY-TO-USE FEATURES
Fits-More(TM) Cooktop The Fits-More(TM) cooktop features five elements - allowing you to cook more at once.
Get Cooking Faster with Quick Boil Our powerful 3,200 watt element allows you to boil water in less than three minutes1.
SpaceWise(R) Expandable Elements Flexible elements expand to your cooking needs.
Easy to Use Front Controls Controls located on the front of the cooktop allows you to adjust the temperature without reaching over hot items. Express-Select(R) Controls Easily go from warm to boil.
Ceramic Glass Cooktop For a more beautiful cooktop that's easy to clean.
Hot Surface Indicators Light on your cooktop informs you when the surface is hot.
CERTIFICATIONS
ADA Compliant ADA Logo
frigidaire.com/frigidaire.ca
FGEC3068UB Frigidaire Gallery 30'' Electric Cooktop

General Specifications
PROP 65 Label No
Shipping Weight (lbs) 35
Frigidaire Fit Promise Yes
Product Weight (lbs) 65
Power Type Electric
Size 30''
Installation Type Drop-In
Collection Frigidaire Gallery
Controls
Control Location Center front
Control Type Mechanical
Cooktop
Center Rear 9" - Quick Boil - 3200 Watts
Hot-Surface Indicator Light Yes
Right Rear 6" - 1200 Watts
Right Front 7" - 1800 Watts
Left Rear 6" - 1200 Watts
Left Front 5" to 7" - 750/1800 Watts
Cooking Surface Black Ceramic Glass
Cooktop Surface Type smooth surface
Installation Type
Oven Combo Approved Yes
Certifications & Approvals
Agency Approval(All Brands) UL/CSA
Sabbath Mode No
ADA Compliant - All Brands Yes
Dimensions: Cut-Out
Height 5"
Depth 19-5/8" - 20-1/2"
Width 28-1/2" - 29-7/8"
Electrical Specifications
Connection Location Right Rear
Min Circuit Required 40A
Voltage Rating 240V / 208V 60Hz
Amps @ 240 Volts 38.3 / 33.2
Connected Load @ 240V 9.2 / 6.9
Dimensions: Exterior
Width 30-5/8"
Height 2-5/8"
Depth 21-3/8"

Express-Select knob controls; 5 SpaceWise expandable burners; 1200-3000W of power; hot-surface indicators.

Faster, More Even Baking Results with True Convection

Get faster, more even multi-rack baking in both ovens with a powerful convection fan and third heating element that evenly circulates hot air throughout the oven.
Effortless(TM) Temperature Probe

The Effortless (TM) Temperature Probe detects and alerts when the desired finished cooking temperature has been reached and automatically switches to the keep warm setting (upper oven only).
Quick Preheat
Preheat in just a few minutes.1

Frigidaire Fit Promise

We promise that your new 27" or 30" Frigidaire(R) double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you for modification costs.2
Cleanup is easy with Hidden Bake

Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
Smudge-Proof(R) Stainless Steel

Resists fingerprints and cleans easily.

Easily access dishes with our glide rack

Rack easily glides in and out allowing you to access dishes from your oven.
Oven Rack Handles

Oven racks are designed with space for you to easily pull out the racks, even when wearing an oven mitt.
Easy to Clean with Self-Cleaning

Your oven cleans itself - so you don't have to. Self clean options available in 2, 3, and 4-hour cycles.

Oven Specifications:
Oven 1 Bake: 2500 Watts
Oven 1 Broil: 6 pass 4000 Watts
Oven 1 Broiling System: Variable (400?F to 550?F)
Oven 1 Interior Width: 20-1/2"
Oven 1 Convection System: Single Fan
Oven 1 Interior Color: Midnight Black
Oven 1 Interior Depth: 18-3/4"
Oven 1 Rack Configuration: 2 HD Handle 1 Offset
Oven 1 Convection: 2500 Watts
Oven 1 Type: Upper
Oven 1 Rack Positions: 5 positions
Oven 1 Interior Lighting: 2 Halogen
Oven Window: XL Window
Oven 1 Cleaning System: Self Clean w/Steam Clean Option
Oven 1 Interior Height: 17"
Oven 1 Baking System: True Hidden Bake
Certifications & Approvals
ADA Compliant: No
Agency Approval: UL
UL Listed: 4-UL Certified
Sabbath Mode (Star-K(R) Certified): Yes
ETL Listed: No
CSA Listed: Yes
Cut-Out Dimensions
Cut-Out Width: 24-7/8" - 25-1/4"
Cut-Out Depth: 24"
Cut-Out Height: 48-7/8" - 49-7/8"
Exterior
Handle Color: Color-Coordinated Metal
Door Finish: Color-Coordinated Glass
Control Panel Finish: Metal Stainless Steel
Cooking Controls
Start Time: Multiple Functions - Both Ovens
Timer: Both Ovens
Broil: Variable - Both Ovens
Keep Warm: Both Ovens
Convection Broil: No
Self-Clean: 2 3 4 Hours - Both Ovens
Convection Roast: Yes
Temperature Probe: Yes - Upper Oven Only
Numerical Keypad: Both Ovens
Start Button: Both Ovens
Cook Duration: Both Ovens
Convection Conversion: Both Ovens
Cancel Button: Both Ovens
Oven Light: Both Ovens
Bake: Both Ovens
Convection Bake: Yes
Quick Preheat: Both Ovens
Lockout: Both Ovens
Electrical Specifications
Minimum Circuit Required (Amps): 40A
Connected Load (kW Rating) @ 240V: 7.4 / 5.6
Voltage Rating: 240V / 208V 60Hz
Amps @ 240 Volts: 30.8 / 26.9
Power Supply Connection Location: Left Rear Bottom
Oven 2 Specifications
Oven 2 Interior Color: Midnight Black
Oven 2 Rack Configuration: 2 HD Handle 1 Offset
Oven 2 Baking System: True Hidden Bake
Oven 2 Type: Lower
Oven 2 Broil: 6 pass 4000 Watts
Oven 2 Interior Width: 20-1/2"
Oven 2 Convection System: Single Fan
Oven 2 Convection: 2500 Watts
Oven 2 Interior Lighting: 2 Halogen
Oven 2 Interior Depth: 18-3/4"
Oven 2 Interior Height: 17"
Oven 2 Window (Size): XL Window
Oven 2 Broiling System: Variable (400?F to 550?F)
Oven 2 Bake: 2500 Watts
Oven 2 Rack Positions: 5 positions
General Specifications
PROP 65 Label: No
Reconditioned: No
Frigidaire Fit Promise: Yes
Exterior Dimensions
Width: 27"
Depth: 24-3/4"
Depth (with Door 90? Open): 45-3/4"
Height: 50-7/8"
Capacities
Oven 2 Capacity: 3.8
Oven 1 Capacity: 3.8

BUILT-IN DUAL ELECTRIC OVEN 30"

Frigidaire Gallery 30'' Gas Cooktop Stainless Steel
